Nodely

BigQuery dataset

This dataset is subject to change without notice.
Please provide feedback on missing features to be included in the final ETL.

Public dataset

Nodely maintains a public BigQuery dataset with Algorand mainnet contents:

  • snapshot only (daily updates once schema is finalized)
  • schema inspired by Google public blockchain datasets (ETH, …)
  • dataset is public but not free - Google charges for data read from this dataset
  • contact [email protected] for datasets and/or SelfService BI with hourly or 5m incremental loads.

Quick start

Go to Algorand dataset @ BigQuery and start playing ;D

Reading list

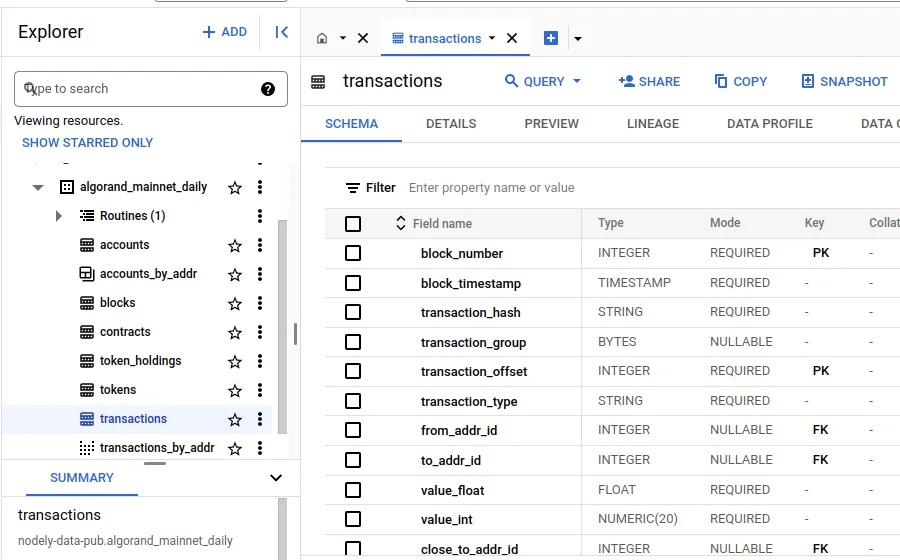

Schema

Base tables

CREATE TABLE `nodely-data-pub.algorand_mainnet_daily.transactions`
(
  block_number INT64 NOT NULL             -- Number of the block in which this transaction was located.
  block_timestamp TIMESTAMP NOT NULL      -- Unix timestamp when the block was assembled
  transaction_hash STRING NOT NULL        -- Hash of the transaction
  transaction_group BYTES                 -- Parent atomic group id (binary)
  transaction_offset INT64 NOT NULL       -- Transaction's index position in the block
  transaction_type STRING NOT NULL        -- One of acc_close acc_payment acc_payment_create app_call app_clear app_close app_delete app_optin app_update asa_clawback asa_config asa_create asa_destroy asa_freeze asa_optin asa_optout asa_transfer asa_unfreeze key_reg key_unreg stpf
  from_addr_id INT64                      -- Sender address id
  to_addr_id INT64                        -- Recipient address id
  value_float FLOAT64 NOT NULL            -- Decimal adjusted amount of Algo or token
  value_int NUMERIC(20) NOT NULL          -- Integer amount of Algo or Token without decimal shift
  close_to_addr_id INT64                  -- Address id of recipient of the closing balance
  close_value_float FLOAT64 NOT NULL      -- Closing balance amount, decimal adjusted
  close_value_int NUMERIC(20) NOT NULL    -- Closing balance amount without decimal shift
  gas INT64 NOT NULL                      -- Transaction free in microAlgos
  note STRING                             -- Optional note (up to 1KB)
  rekey_to_addr_id INT64                  -- Account rekey to address id
  auth_by_addr_id INT64                   -- Transaction authorized by this address id (if sender is rekeyed)
  has_inners BOOL NOT NULL                -- Transaction has inner transactions
  is_inner BOOL NOT NULL                  -- Transaction is an inner transaction issued by smart contract
  clawback_from_addr_id INT64             -- Address id of the account the token is clawed back from
  token_cfg STRUCT<list ARRAY<STRUCT<element INT64>>> NOT NULL -- new address ids for reserve/clawback/freezer/manger in random order
  token_id INT64                          -- Asset id (token/nft)
  token_total NUMERIC(20)                 -- Total number of assets minted
  token_unit_name STRING                  -- Asset unit name
  contract_id INT64                       -- ID of the contract called
  input STRING                            -- Extra TX data / app call input
  root_offset INT64                       -- transaction offset pointing to the root (outer) transation
  parent_offset INT64                     -- transaction offset pointing to parent transaction
  depth INT64                             -- the depth of the transaction in the tree
  inners_all INT64                        -- number of all inners spawned by this transaction (recursive)
  inners_direct INT64                     -- number of all direct (1st level) inners spawned by this transaction
  PRIMARY KEY (block_number, transaction_offset) NOT ENFORCED,
  FOREIGN KEY (from_addr_id) REFERENCES `nodely-data-pub.algorand_mainnet_daily.accounts`(addr_id) NOT ENFORCED,
  FOREIGN KEY (to_addr_id) REFERENCES `nodely-data-pub.algorand_mainnet_daily.accounts`(addr_id) NOT ENFORCED,
  FOREIGN KEY (close_to_addr_id) REFERENCES `nodely-data-pub.algorand_mainnet_daily.accounts`(addr_id) NOT ENFORCED,
  FOREIGN KEY (rekey_to_addr_id) REFERENCES `nodely-data-pub.algorand_mainnet_daily.accounts`(addr_id) NOT ENFORCED,
  FOREIGN KEY (from_addr_id) REFERENCES `nodely-data-pub.algorand_mainnet_daily.accounts`(addr_id) NOT ENFORCED,
  FOREIGN KEY (to_addr_id) REFERENCES `nodely-data-pub.algorand_mainnet_daily.accounts`(addr_id) NOT ENFORCED,
  FOREIGN KEY (close_to_addr_id) REFERENCES `nodely-data-pub.algorand_mainnet_daily.accounts`(addr_id) NOT ENFORCED,
  FOREIGN KEY (rekey_to_addr_id) REFERENCES `nodely-data-pub.algorand_mainnet_daily.accounts`(addr_id) NOT ENFORCED,
  FOREIGN KEY (auth_by_addr_id) REFERENCES `nodely-data-pub.algorand_mainnet_daily.accounts`(addr_id) NOT ENFORCED,
  FOREIGN KEY (auth_by_addr_id) REFERENCES `nodely-data-pub.algorand_mainnet_daily.accounts`(addr_id) NOT ENFORCED,
  FOREIGN KEY (clawback_from_addr_id) REFERENCES `nodely-data-pub.algorand_mainnet_daily.accounts`(addr_id) NOT ENFORCED,
  FOREIGN KEY (token_id) REFERENCES `nodely-data-pub.algorand_mainnet_daily.tokens`(token_id) NOT ENFORCED
)
PARTITION BY TIMESTAMP_TRUNC(block_timestamp, MONTH)
CLUSTER BY block_number, transaction_offset
OPTIONS(
  description="Algorand mainnet transactions. See: https://nodely.io/docs/public/bigquery",
  labels=[("status", "production")]
);

Base views

-- Simple non zero Algo / NFT / Token flows
-- Each transaction creates 2 or more flows , +close_to, +clawback


-- Caveats:
-- * Clawback not rendered yet
-- * An NFT is a token with a total number or units == 1
--
create view `algorand_mainnet_daily.v_flows_simple` as
with flows as (
-- no clawback
  select
    block_timestamp
    , from_addr_id addr_id
    , to_addr_id other_addr_id
    , 'outflow' as dir
    , value_float as flow_value
    , gas / pow(10,6) gas_algo
    , case when t.transaction_type like 'acc%' then 'algo' when token_total = 1 then 'nft' else 'token' end xfer
    , token_id
    , t.is_inner
    , t.transaction_type
  from
    `algorand_mainnet_daily.transactions` t
  where
    (t.transaction_type like 'acc%' or t.transaction_type like 'asa%')
UNION ALL
  select
    block_timestamp
    , from_addr_id addr_id
    , close_to_addr_id other_addr_id
    , 'outflow' as dir
    , close_value_float as flow_value
    , 0 gas_algo
    , case when t.transaction_type like 'acc%' then 'algo' when token_total = 1 then 'nft' else 'token' end xfer
    , token_id
    , t.is_inner
    , t.transaction_type
  from
    `algorand_mainnet_daily.transactions` t
  where
    (t.transaction_type like 'acc%' or t.transaction_type like 'asa%')
    and close_to_addr_id IS NOT NULL
UNION ALL
  select
    block_timestamp
    , to_addr_id addr_id
    , from_addr_id other_addr_id
    , 'inflow' as dir
    , value_float as flow_value
    , 0 gas_algo
    , case when t.transaction_type like 'acc%' then 'algo' when token_total = 1 then 'nft' else 'token' end xfer
    , token_id
    , t.is_inner
    , t.transaction_type
  from
    `algorand_mainnet_daily.transactions` t
  where
    (t.transaction_type like 'acc%' or t.transaction_type like 'asa%')
UNION ALL
  select
    block_timestamp
    , close_to_addr_id addr_id
    , from_addr_id other_addr_id
    , 'inflow' as dir
    , close_value_float as flow_value
    , 0 gas_algo
    , case when t.transaction_type like 'acc%' then 'algo' when token_total = 1 then 'nft' else 'token' end xfer
    , token_id
    , t.is_inner
    , t.transaction_type
  from
    `algorand_mainnet_daily.transactions` t
  where
    (t.transaction_type like 'acc%' or t.transaction_type like 'asa%')
    and close_to_addr_id IS NOT NULL
) select * from flows where flow_value > 0;

Aux tables

CREATE TABLE `nodely-data-pub.algorand_mainnet_daily`.token_prices
(
  token_id INT64 NOT NULL -- id of the token
  token_name STRING NOT NULL -- token name
  token_ticker STRING NOT NULL -- token ticker
  algo_value FLOAT64 NOT NULL -- token current value in Algo
  market_cap FLOAT64 NOT NULL -- token current MC in Algo
  first_block_number INT64 NOT NULL -- first block with price data")
)
CLUSTER BY token_id
OPTIONS(
  description="Token prices, updated daily. See: https://nodely.io/docs/public/bigquery",
  labels=[("status", "development")]
);

Example queries

Accounts

Addresses created monthly

-- <1 GB processed
SELECT
  TIMESTAMP_TRUNC(bs.block_timestamp, MONTH) ts
  , sum(`addresses_new_cnt) addresses_created
FROM
  `algorand_mainnet_daily.blocks` bs
GROUP BY
  ts
ORDER BY
  ts

Daily discinct addresses stats

-- no clawback
 select
  TIMESTAMP_TRUNC(flows.block_timestamp, DAY) ts
  ,count(distinct(flows.addr_id)) uniq_addresses
  ,countIf(dir = 'outflow' and transaction_type = 'acc_payment_create') new_addresses
  ,count(distinct(case when dir = 'outflow' then flows.addr_id else NULL end)) uniq_senders
  ,count(distinct(case when dir = 'outflow' and xfer='algo' and flow_value > 100 then flows.addr_id else NULL end)) uniq_algo_senders_over_100A
  ,count(distinct(case when dir = 'inflow' then flows.addr_id else NULL end)) uniq_reveicers
  ,count(distinct(case when dir = 'inflow' and xfer='algo' and flow_value > 100 then flows.addr_id else NULL end)) uniq_algo_receivers_over_100A
  ,count(distinct(case when dir = 'inflow' then flows.addr_id || ':' || other_addr_id else NULL end)) uniq_pairs
  from
    `algorand_mainnet_daily.v_flows_simple` flows
  where
    flows.block_timestamp between '2024-04-01' and '2024-04-30'
  group by ts
  order by ts

Top 10

-- White Stars (spawning new accounts)
-- ~5GB
WITH whiteStars AS (
  SELECT
    from_addr_id addr_id,
    count(distinct(to_addr_id)) spread
  FROM `algorand_mainnet_daily.transactions`
  WHERE
    block_timestamp > CURRENT_TIMESTAMP() - INTERVAL 7 DAY
    AND transaction_type = 'acc_payment_create'
    AND value_int > 0
  GROUP BY from_addr_id
  ORDER BY spread DESC
  LIMIT 10
) SELECT
    address , spread as new_accounts
  FROM
    whiteStars JOIN `algorand_mainnet_daily.accounts` acc USING (addr_id)
  ORDER BY new_accounts DESC

Token value

-- Circulating (non clawback, non reserve, not burned) tokens value in USD
DECLARE algousdc FLOAT64 DEFAULT 0;


SET (algousdc) = (
  SELECT AS STRUCT algo_value
  FROM `algorand_mainnet_daily.token_prices`
  WHERE token_id  = 31566704 /* USDC */
);


SELECT
  sum(th.balance_float * algo_value) / algousdc MC_USD
FROM
  `algorand_mainnet_daily.token_holdings` th
  JOIN `algorand_mainnet_daily.token_prices` tp using (token_id)
WHERE
  is_circulating
  and th.addr_id not in (2853884730,1970085357,2451993965,1970086565,2451993800,2451993961,3579003880) /* skip known reserve */

Demo

SELECT
  TIMESTAMP_TRUNC(block_timestamp, MONTH) yearMonth
  , count(*) newContractDeployments
FROM
  nodely-data-pub.algorand_mainnet_daily.contracts
WHERE
  block_timestamp < TIMESTAMP_TRUNC(current_timestamp(), MONTH)
GROUP BY
  yearMonth;

Video tutorials

Upcoming

  • Base tables
    • contracts_accountstate
  • Aux tables
    • Account labels
    • NFD labels
  • Virtual transaction tables
    • Genesis
    • Legacy rewards
    • 2024+ block rewards
